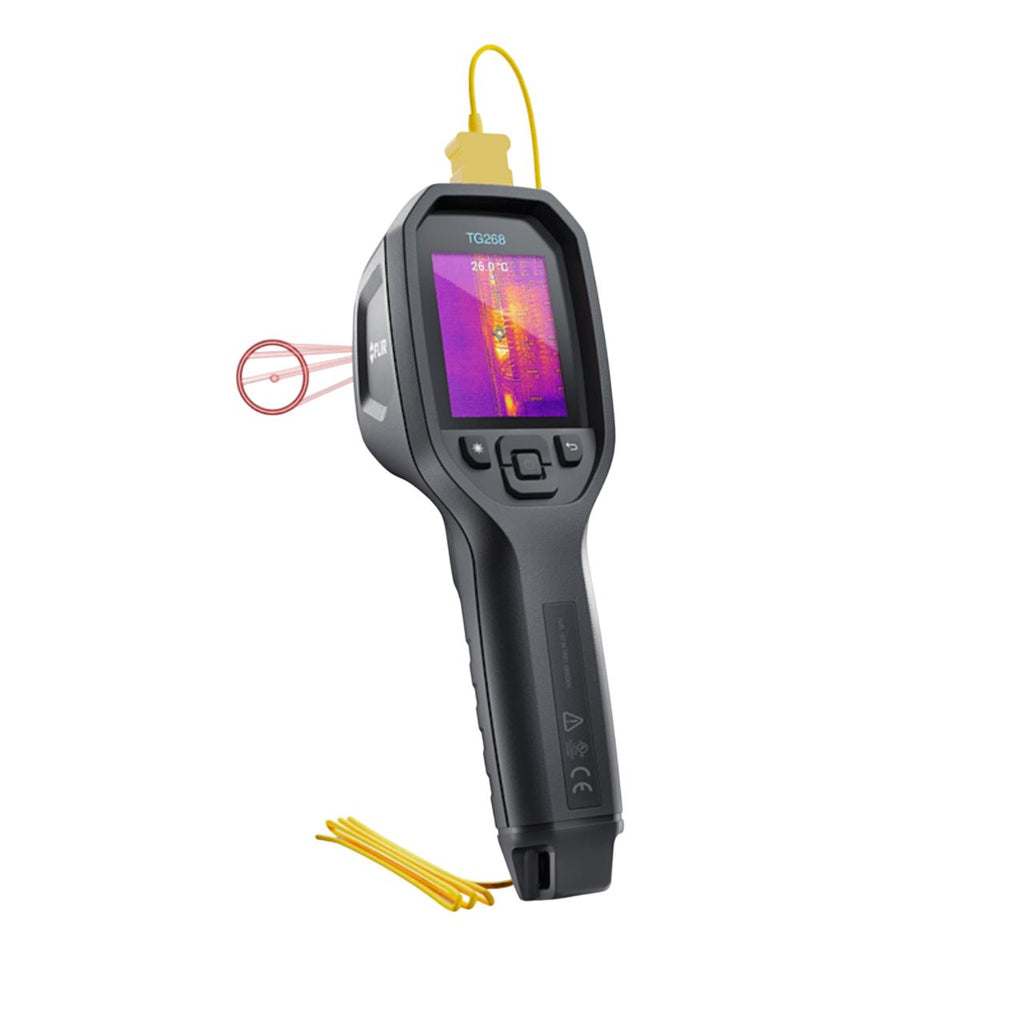

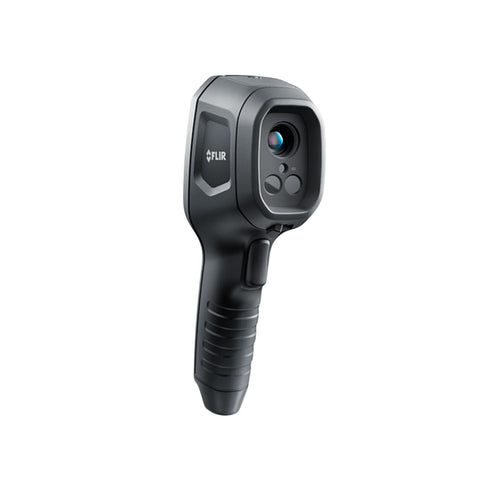

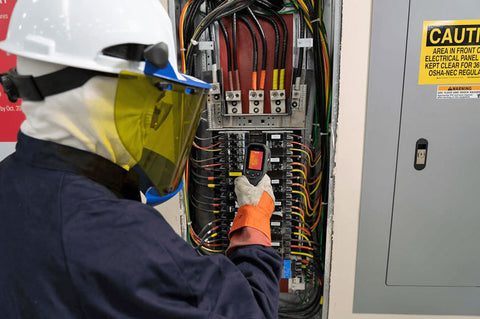

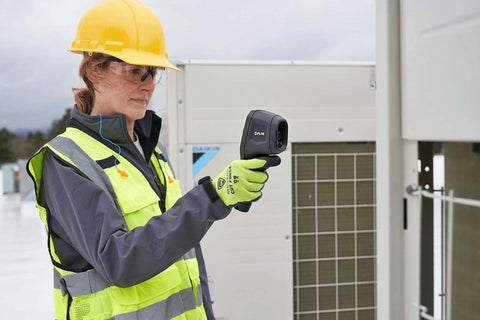

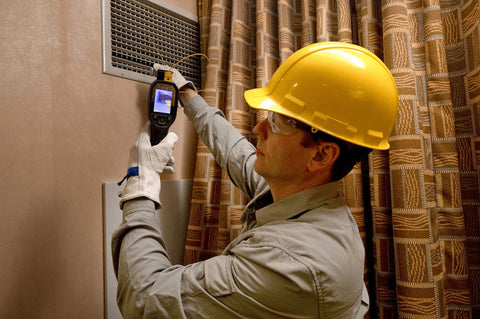

The FLIR TG268 delivers professional-grade thermal imaging in a compact handheld format. Its 160x120 pixel thermal sensor captures detailed temperature variations across surfaces, while MSX technology overlays thermal data onto visible light images for enhanced context. With a maximum measurement range of +400°C and 24:1 optical resolution, this pyrometer excels at identifying hotspots in electrical systems, HVAC installations, and industrial equipment. The integrated bullseye laser pinpoints measurement areas with precision, while the Type K thermocouple input expands measurement capabilities for contact-based readings. Ideal for maintenance technicians and thermal diagnosticians requiring reliable, accurate temperature analysis in demanding field conditions.

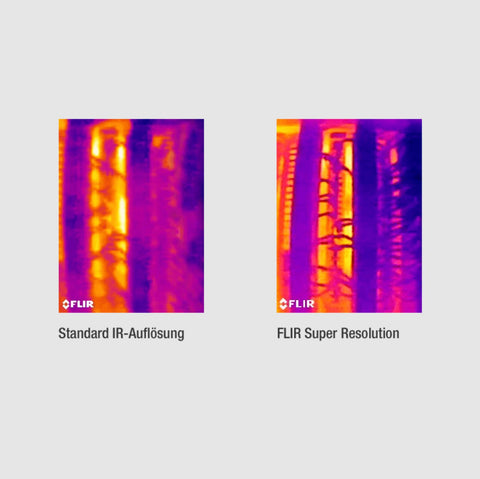

The FLIR TG268 combines advanced thermal imaging with practical field diagnostics. Featuring a 160×120 thermal sensor with super-resolution capability up to 320×240 pixels, it captures fine temperature details across industrial and commercial applications. Thermal sensitivity below 70 mK ensures detection of subtle temperature variations, while accuracy within ±1.5°C across standard operating ranges supports reliable measurements. The 57° × 44° field of view and focus-free design enable quick assessments without adjustment delays. MSX imaging technology fuses thermal and visible-light data for contextual analysis, displayed on a 2.4-inch color LCD with multiple thermal palettes. The uncooled microbolometer detector operates at 8.7 Hz refresh rate, and 4GB onboard storage captures non-radiometric thermal video for documentation. Six color palettes—Iron, Rainbow, White Hot, Black Hot, Arctic, and Lava—optimize visibility across different measurement scenarios, making this pyrometer essential for electrical troubleshooting, mechanical inspections, and preventive maintenance programs.
Specifications:
- IR resolution: 160 × 120
- Super resolution: 320 × 240
- Thermal sensitivity / NETD: < 70 mK
- Accuracy: ±1.5°C (2.7°F) for temperatures from 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F)
- Field of view (FOV): 57° × 44°

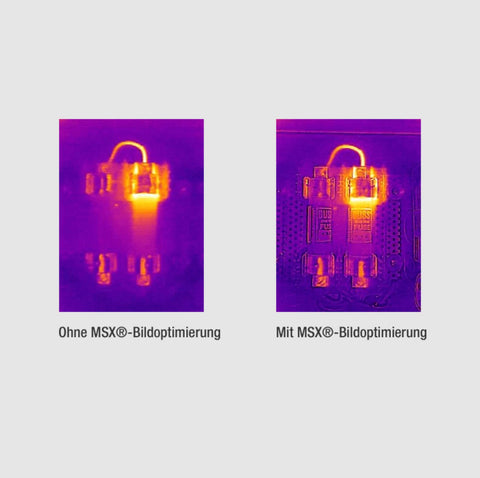

- Image modes: MSX (Multi Spectral Dynamic Imaging), Visual with temperature reading
- Display: 320 × 240, 2.4-inch color LCD
- Storage media: eMMC 4 GB
- Recording non-radiometric IR video: Yes
- Image frequency: 8.7 Hz
- Detector grid: 12 µm
- Detector type: Focal Plane Array (FPA), uncooled microbolometer
- Digital image optimization: Yes
- Color palettes: Iron, Rainbow, White hot, Black hot, Arctic, Lava
- Focus: Focus-free
- Integrated digital camera: Yes
- Laser: Class 1 laser indicates the temperature measurement range when the corresponding button is pressed.
- Minimum focus distance: 30 cm (0.98 feet)
- Minimum measurement distance: 26 cm (0.85 feet)
- Spectral range: 7.5 – 14 µm
