HUAWEI WiFi Mesh X3 Pro, Glowing and Fast Whole-Home Wi-Fi Coverage | 3.6 Gbps Dual-Band Wi-Fi 7

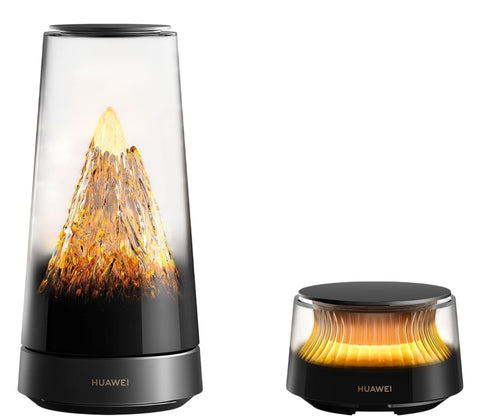

Experience seamless whole-home connectivity with the HUAWEI WiFi Mesh X3 Pro. This advanced Wi-Fi 7 system delivers blazing-fast speeds up to 3.6 Gbps across dual bands (2.4 GHz & 5 GHz), ensuring smooth streaming, gaming, and browsing throughout your space. The master router stands at 250.9 mm high and 123.2 mm in diameter, weighing approximately 790 g, while the compact extender (73.5 mm high, 114.8 mm diameter, ~420 g) expands coverage effortlessly. Both units feature 2×2 MIMO technology and support dual-band integration for optimized performance. With IEEE 802.11be/ax/ac/n/a standards, this mesh system intelligently manages multiple devices simultaneously. The 5 GHz band reaches 2882 Mbps while the 2.4 GHz band delivers 688 Mbps, combining for exceptional throughput. Perfect for modern homes demanding reliable, high-speed wireless connectivity.

The Master Router features two adaptive rate network ports (10/100/1000 M/2500 M) suitable for both WAN and LAN interfaces, while the Extender includes one such port. Both devices are equipped with 128 MB of internal storage (ROM) and 512 MB of operational memory (RAM). They have a maximum power consumption of 24 W and operate on a DC voltage of 12V 2A. Security measures include firewall protection, HUAWEI HomeSec® to prevent Wi-Fi brute-force attacks, and parental controls that allow users to restrict internet access by category. Wi-Fi security protocols supported include WPA2-PSK, WPA/WPA2-PSK, and WPA2-PSK/WPA3-SAE, along with blocklist and trustlist functionalities. The devices can function in a wide range of environmental conditions, with a storage humidity of 5% to 95%, a storage temperature from -40℃ to 70℃, and an operating temperature between 0℃ and 40℃. Each device is equipped with two antennas for 2.4G and four antennas for 5G, supporting multiple Wi-Fi channels. The HUAWEI AI Life application is compatible with iOS, Android, and HarmonyOS. The packaging includes two power adapters, a quick start guide, one Master Router, one Extender, and one Ethernet cable.

Specifications:

• Dimensions and weight

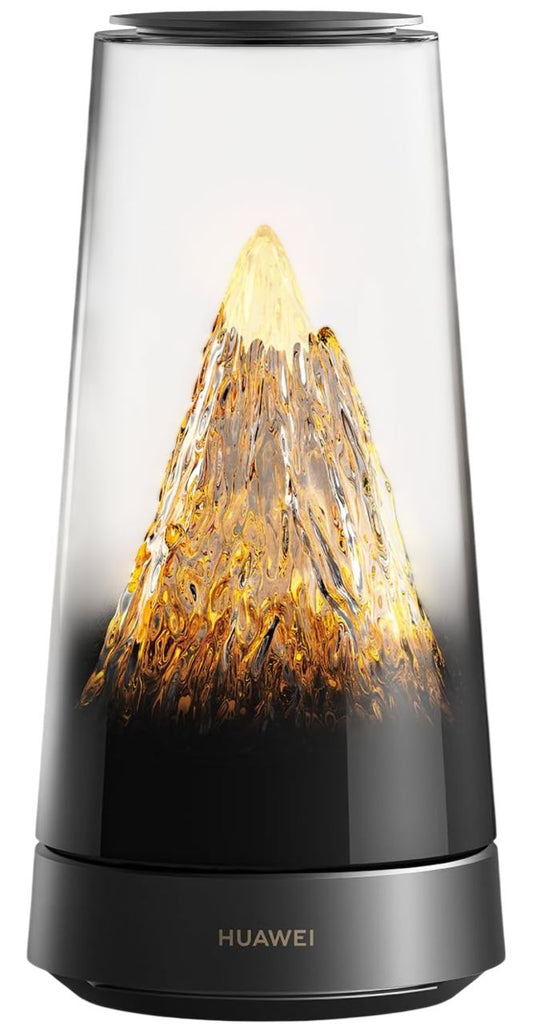

  Master router




  Height: 250.9 mm

  Diameter: 123.2 mm




  Extender

  Height: 73.5 mm

  Diameter: 114.8 mm

  Master router weight: About 790 g

  Extender weight: About 420 g
• Wi-Fi
• Wireless Band: 2.4 GHz & 5 GHz (Support dual band integration configuration)



  Transmission Standard: IEEE 802.11be/ax/ac/n/a, 2 × 2 MIMO

  IEEE 802.11be/ax/n/g/b, 2 × 2 MIMO

  2 × 2 MU-MIMO: Supported

  Wireless Transmission Rate: Wi-Fi 7 2 × 2

  2.4 GHz: 688 Mbps (theoretical)

  5 GHz: 2882 Mbps (theoretical)

  Total theoretical negotiated rate: 3570 Mbps

• Network Port



  Master Router: 10/100/1000 M/2500 M adaptive rate Network Port × 2 (Adaptive WAN and LAN interfaces)

  Extender: 10/100/1000 M adaptive rate Network Port × 1



• Storage



  Master Router and Extender

  Internal storage (ROM): 128 MB

  Operation memory (RAM): 512 MB



• Power Supply



  Master Router and Extender Maximum power consumption: 24 W

  Working voltage: DC 12V 2A



• Security



  Firewall security: Supported

  HUAWEI HomeSec®: Supported

  Parental Control: Supported

  Wi-Fi Security: Supported (WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE, and blocklist/trustlist)



• Environment



  Storage humidity: 5%～95%

  Storage temperature: -40℃～70℃

  Operating temperature: 0℃～40℃

  Operating humidity: 5%～95%, non-condensing



• Antenna



  Master Router: 2.4G: 2 antennas; 5G: 4 antennas

  Extender: 2.4G: 2 antennas; 5G: 4 antennas



• Number of Wi-Fi channels
• 2.4G channel: 1-13: 5G channel: 36-64 and 100-140 in countries and areas using the CE standards.


• Application



  HUAWEI AI Life

  iOS/Android/HarmonyOS

• Packing List

  Power adapter × 2, QSG × 1, Master Router × 1, Extender × 1, Ethernet cable × 1
